Static Model
Copyright © 2003
2003-06-09
| Revision History | |
|---|---|
| Revision 0.1 | 2003-05-19 |
| Initial public release. | |
| Revision 0.2 | 2003-06-09 |
| Corrected some cardinalities, extended descriptions, added operations. | |
Abstract
This document contains the class diagrams and class descriptions that resulted from the static analysis.
Table of Contents
- 1. Data and Meta Data Management Classes
- 1.1. Resource
- 1.2. ResourceType
- 1.3. AttributeType
- 1.4. NumberAttributeType
- 1.5. TextAttributeType
- 1.6. Attribute
- 1.7. NumberAttribute
- 1.8. TextAttribute
- 1.9. Link
- 1.10. LinkRule
- 1.11. LinkRuleEnd
- 1.12. CardinalitySpec
- 2. User Management Classes
- 2.1. AuthenticationData
- 2.2. User
- 2.3. Role
- 2.4. AccessRight
- 2.5. ResourceAccessRight
- 2.6. AttributeAccessRight
- 2.7. LinkAccessRight
- 3. Filter Classes
- 3.1. Filter
- 3.2. Constraint
- 3.3. AttributeConstraint
- 3.4. LinkageConstraint
- 4. Control and Boundary Classes
- 4.1. SessionState
- 4.2. UI

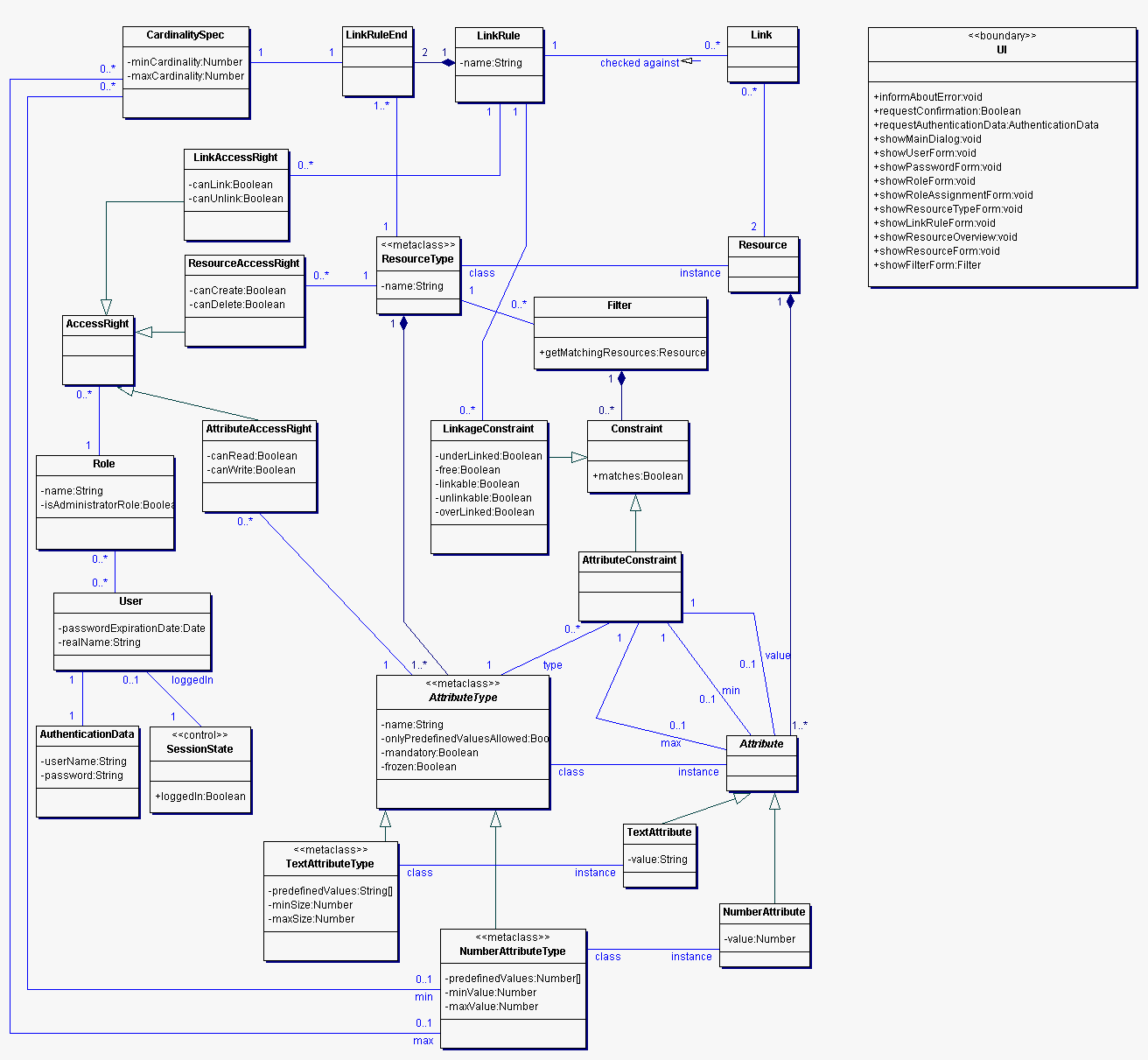

- 5. Extensive Overview

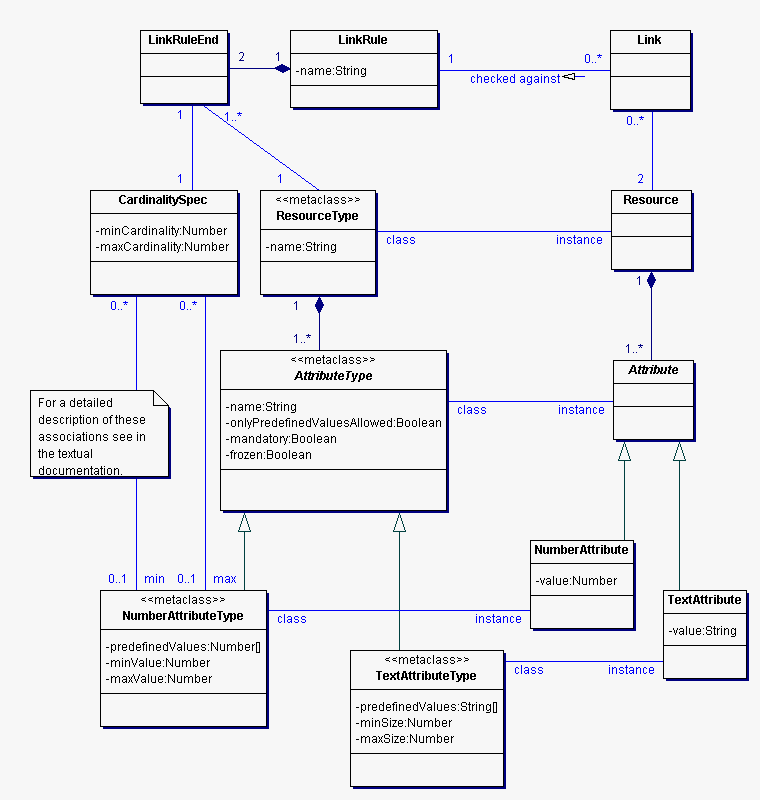

The following diagram depicts the data and meta data structures of the MRMS.
- Description
A Resource is composed of its Attributes and is an instance of a ResourceType which specifies which Attributes the Resource may have.
- Attributes
---
- Operations
---
- Description
A ResourceType specifies (by composition) the Attributes that a Resource of this type has.
- Attributes
name (String): the name of the ResourceType
- Operations
---
- Description
Abstract base class for attribute types that a ResourceType is composed of.
- Attributes
name (String): the name of the AttributeType
onlyPredefinedValuesAllowed (Boolean): if true, the user may only select the predefined values for an Attribute that has this type; if false, he may enter another value as well
mandatory (Boolean): if true, the user must enter a value for Attributes of this type
frozen (Boolean): if true, the user may not change the value of Attributes of this type
- Operations
---
- Description
Concrete AttributeType for NumericalAttributes.
- Attributes
predefinedValues (Number[]): an array specifying predefined values for Attributes of this type
minValue (Number): the minimum value Attributes of this type may have
maxValue (Number): the maximum value Attributes of this type may have
- Operations
---
- Description
Concrete AttributeType for TextAttributes.
- Attributes
predefinedValues (String): an array specifying predefined values for Attributes of this type
minSize (Number): the minimum number of characters Attributes of this type may have
maxSize (Number): the maximum number of characters Attributes of this type may have
- Operations
---
- Description
Abstract base class for attributes that a Resource is composed of.
- Attributes
---
- Operations
---
- Description
Concrete Attribute for a numerical property characterisation of a Resource.
- Attributes
value (Number): numerical property characterisation of a Resource
- Operations
---
- Description
Concrete Attribute for a textual property characterisation of a Resource.
- Attributes
value (Number): textual property characterisation of a Resource
- Operations
---
- Description
A Link references the two Resources that are linked together by it. Its consistency is checked against the LinkRule it is referenced with.
- Attributes
---
- Operations
---
- Description
A LinkRule defines characteristics of a consistent Link. It aggregates two LinkRuleEnds.
- Attributes
name (String): name of the LinkRule.
- Operations
---
- Description
A LinkRuleEnd belongs to a LinkRule. One LinkRuleEnd of a LinkRule specifies that Resources of the referenced ResourceType may be linked (to Resources of the ResourceType referenced by the other LinkRuleEnd) according to the referenced CardinalitySpec.
- Attributes
---
- Operations
---
- Description
Specifies the minimum and maximum cardinality for a link rule end of a link rule. Example: A LinkRule has two ends LinkRuleEnd l1 and LinkRuleEnd l2. The LinkRuleEnd l1 references the ResourceType t1 and CardinalitySpec c1 while l2 references t2 and c2. If c1 is min=1 and max=4, this means that one specific Resource of type t2 must have at least 1 and may have up to 4 Links to Resources of type t1. The CardinalitySpec c1 may reference a NumberAttributeType of the ResourceType t2.
- Attributes
minCardinality (Number): value for the minimum cardinality; will be ignored when there is a “min”-reference to a NumberAttributeType, in this case the NumberAttribute's value will be used instead
maxCardinality (Number): value for the maximum cardinality; will be ignored when there is a “max”-reference to a NumberAttributeType, in this case the NumberAttribute's value will be used instead
- Operations
---
The following diagram depicts the classes for user management of the MRMS.
- Description
Value class, encapsulating the authentication data of a user.
- Attributes
userName (String): the user's name
password (String): the user's password
- Operations
---
- Description
Class for user accounts of the MRMS. Its instances may play Roles in the system.
- Attributes
passwordExpirationDate (Date): date after which the user has to enter a new password
realName (String): real name of the user
- Operations
static checkPasswordStrength(password: String): Boolean
- Effect
Checks, if the given password String is strong enough (minimum length, mixed letters and numbers, ...) to be accepted by the system.
- Parameters
password: the password to be checked
- Return
The boolean value true, iff the password is strong enough.
- Exceptions
---
- Actor
Control class of the use case “User changes password”.
static findUser(authData: AuthenticationData): User
- Effect
Searches the system for a User matching the given AuthenticationData.
- Parameters
authData: the AuthenticationData to search for
- Return
If a matching User object could be found it is returned, otherwise the operation returns the null pointer.
- Exceptions
---
- Actor
Control class of the use case “User logs in”.
- Description
A Role defines which AccessRights its players (Users) have.
- Attributes
name (String): name of the Role
isAdministratorRole (Boolean): defines if Users of the Role have administration rights
- Operations
---
- Description
Abstract base class for access rights. If a Role references an AccessRight it has this AccessRight. Users have the AccessRights which the Roles they play have.
- Attributes
---
- Operations
---
- Description
Concrete AccessRight that defines owner's authority of working with Resources that are of a specific ResourceType.
- Attributes
canCreate (Boolean): defines if Resources of the referenced ResourceType may be created
canDelete (Boolena): defines if Resources of the referenced ResourceType may be deleted
- Operations
---
- Description
Concrete AccessRight that defines owner's authority of working with Atrributes of a specific AttributeType that belongs to a specific ResourceType.
- Attributes
canRead (Boolean): defines if Attributes of the referenced AttributeType may be read
canWrite (Boolean): defines if Attributes of the referenced AttributeType may be written
- Operations
---
- Description
Concrete AccessRight that defines owner's authority of creating and deleting Links according to a specific LinkRule.
- Attributes
canLink (Boolean): defines if Links according to the referenced LinkRule may be created
canUnlink (Boolean): defines if Links according to the referenced LinkRule may be deleted
- Operations
---

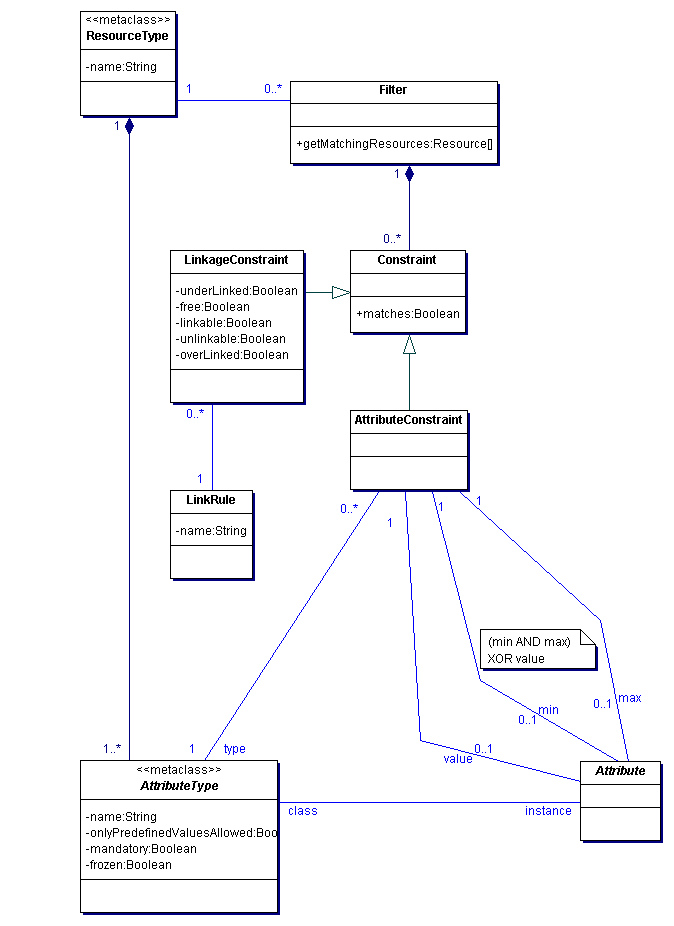

The following diagram depicts the classes needed to create a filtered collection of Resources.
- Description
A Filter is used to get a subset of all Resources of the referenced ResourceType. The Filter is defined by the Constraints it is composed of.
- Attributes
---
- Operations
getMatchingResources(): Resource[]
- Effect
Searches the system for Resources matching the referenced Constraints.
- Parameters
---
- Return
An array of the matching Resources.
- Exceptions
---
- Actor
Control class of the use case “Create filtered collection of resource entries”.
- Description
Abstract base class for constraints. Constraints are used by a Filter to describe a specific state that Resource must fulfill to pass.
- Attributes
---
- Operations
matches(resource: Resource): Boolean
- Effect
Tests, if the given Resource matches this Constraint.
- Parameters
resource: the Resource to be tested
- Return
The boolean value true, iff the given Resource matches this Constraint.
- Exceptions
---
- Actor
Class Filter.
- Description
An AttributeConstraint is a concrete Constraint that checks whether an Attribute of the referenced AttributeType is either equal to the referenced Attribute or lays between the two referenced min- and max-Attributes.
- Attributes
---
- Operations
---
- Description
A LinkageConstraint is a concrete Constraint that checks whether a Resource matches the linkage state that is described by the following attributes. A LinkageConstraint references a LinkRule it refers to: the Link Rule defines a minimum and a maximum cardinality (min and max); the Resource has a current cardinality (cur).
- Attributes
underLinked (Boolean): cur < min
free (Boolean): cur = 0
linkable (Boolean): cur < max
unlinkable (Boolean): cur >= max
overLinked (Boolean): cur > max
- Operations
---
The following diagram depicts the main classes needed to realize an interaction between the user and the MRMS. (Currently we don't have included the control classes for the use cases.)
- Description
A SessionState describes a session of interaction between the MRMS and a user. A User is logged in in a SessionState if it references that User.
- Attributes
---
- Operations
loggedIn(user: User): Boolean
- Effect
Checks whether the given User is logged in in this SessionState.
- Parameters
---
- Return
The boolean value true, iff the given User is logged in in this SessionState.
- Exceptions
---
- Actor
All control classes.
- Description
The UI is responsible for providing all facilities the MRMS needs to interact with a user.
- Attributes
---
- Operations
informAboutError(text: String): void
- Effect
The user is informed about an error that occured in the system.
- Parameters
text: the description of the error that occured
- Return
---
- Exceptions
---
- Actor
Any control class.
requestConfirmation(text: String): Boolean
- Effect
The user is requested to confirm or cancel an action.
- Parameters
text: the question to be answered by the user
- Return
The boolean value true, iff the user confirmed
- Exceptions
---
- Actor
Any control class.
requestAuthenticationData(): AuthenticationData
- Effect
Requests authentication data (username and password) from the user.
- Parameters
---
- Return
An AuthenticationData object holding the values for username and password provided by the user.
- Exceptions
AuthenticationAbortedException if the user cancelled the operation
- Actor
Control class of the use case “User logs in”.
showMainDialog(): void
- Effect
The user is shown the main dialog for interaction with the system.
- Parameters
---
- Return
---
- Exceptions
---
- Actor
Main control class.
showUserForm(io_user: User): void
- Effect
The user is shown a form for editing a User's attributes.
- Parameters
io_user: the User to be edited
- Return
---
- Exceptions
---
- Actor
Control class of the use case “Create user account”.
showPasswordForm(io_password: String): void
- Effect
The user is shown a form for editing a User's password.
- Parameters
io_password: the password String to be edited
- Return
---
- Exceptions
---
- Actor
Control class of the use case “User changes password”.
showRoleForm(io_role: Role): void
- Effect
The user is shown a form for editing a Role's name.
- Parameters
io_role: the Role to be edited
- Return
---
- Exceptions and
---
- Actor
Control class of the use case “Create role”.
showRoleAssignmentForm(io_user: User): void
- Effect
The user is shown a form for editing a User's role assignment.
- Parameters
io_user: the User whose role assignment should be edited
- Return
---
- Exceptions
---
- Actor
Control class of the use case “Edit role assignment of user account”.
showRoleAccessRightsForm(io_role: Role): void
- Effect
The user is shown a form for editing a Role's access rights.
- Parameters
io_role: the Role to be edited
- Return
---
- Exceptions
---
- Actor
Control class of the use case “Edit rights for role”.
showResourceTypeForm(io_resourceType: ResourceType): void
- Effect
The user is shown a form for editing a ResourceType's name and the AttributeTypes it is composed of.
- Parameters
io_resourceType: the ResourceType to be edited
- Return
---
- Exceptions
---
- Actor
Control class of the use case “Define resource type”.
showLinkRuleForm(io_linkRule: LinkRule): void
- Effect
The user is shown a form for editing a LinkRule's attributes.
- Parameters
io_linkRule: the LinkRule to be edited
- Return
---
- Exceptions
---
- Actor
Control class of the use case “Define link rule”.
showResourceOverviewForm(resources: Resource[]): void
- Effect
The user is shown a list of the given Resources.
- Parameters
resources: the Resources to be shown
- Return
---
- Exceptions
---
- Actor
Main control class and control class of the use case “Create filtered collection of resource entries”.
showResourceForm(io_resource: Resource): void
- Effect
The user is shown a form for editing a Resource's Attributes.
- Parameters
io_resource: the Resource to be edited
- Return
---
- Exceptions
---
- Actor
Control classes of the use cases “Create resource” and “Edit resource”.
showFilterForm(): Filter
- Effect
The user is shown a form for specifying a Filter.
- Parameters
---
- Return
A Filter configured according to the users input.
- Exceptions
---
- Actor
Control class of the use case “Create filtered collection of resource entries”.
